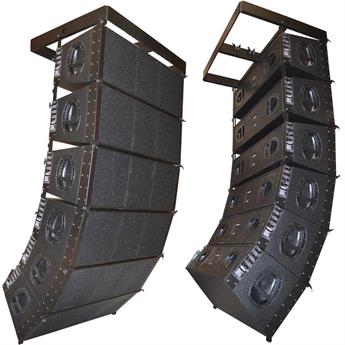

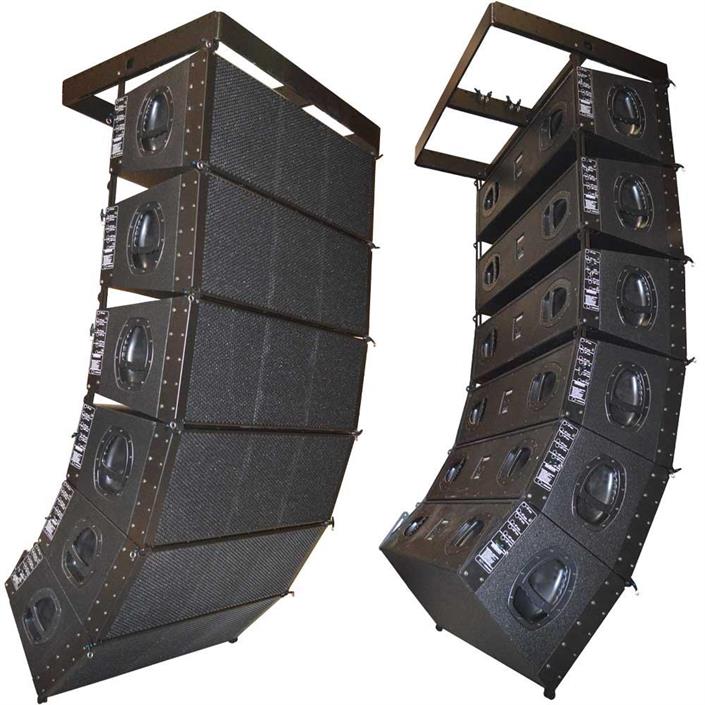

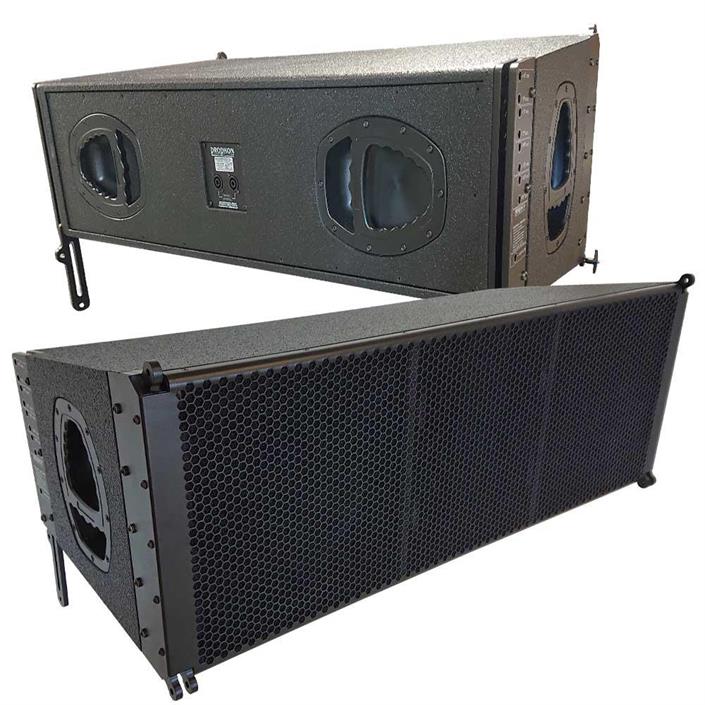

3-way high-power Line array.

• 110 x 15 degree dispersion PLA212DF
• 80 x 10 degree dispersion PLA212LT

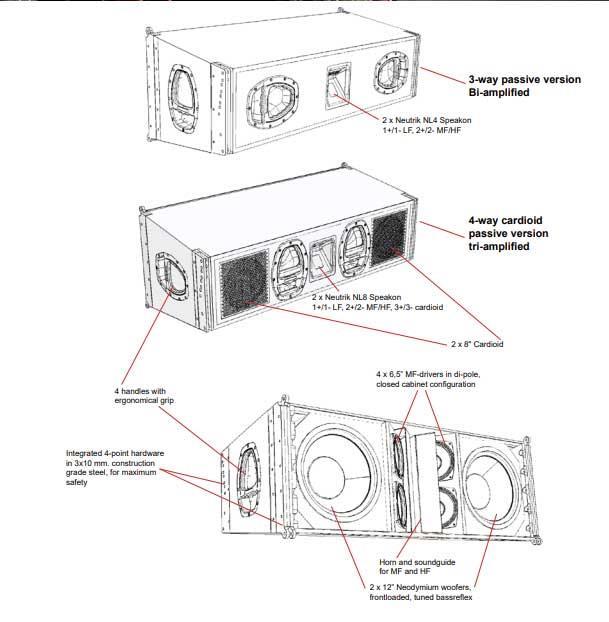

• 3-way passive, 3-way active, 4-way passive cardioid, 4-way active cardioid
• Integrated hardware and flightware

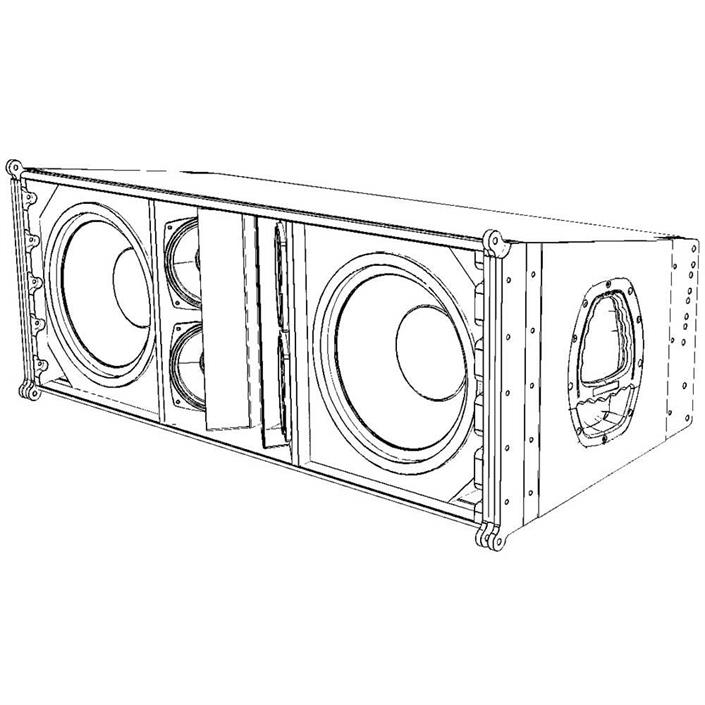

• LF: 2 x 12" neodymium woofer in frontloaded tuned bassreflex design
• MF: 4 x 6,5" neodymium midrange woofers mounted in dipole configuration
• HF: 3 x 1" neodymium drivers with 1,7" voice coils mounted on waveguid and horn
• Cardioid: 2 x 8" neodymium woofers mounted in the back.
• Four handles
• 4-point integrated rigging hardware
• Power handling 4-way cardioid 4900W cont.
• Power handling 3-way 33500W
• Sensitivity: 106dB
• Max SPL: 145dB single speaker (calc. cont.) / 148dB (calc. peak)
• Weight: 66 kg passive 3-way version, 72 kg. passive 4-way version
• Dimensions: W110 x H400 x D400

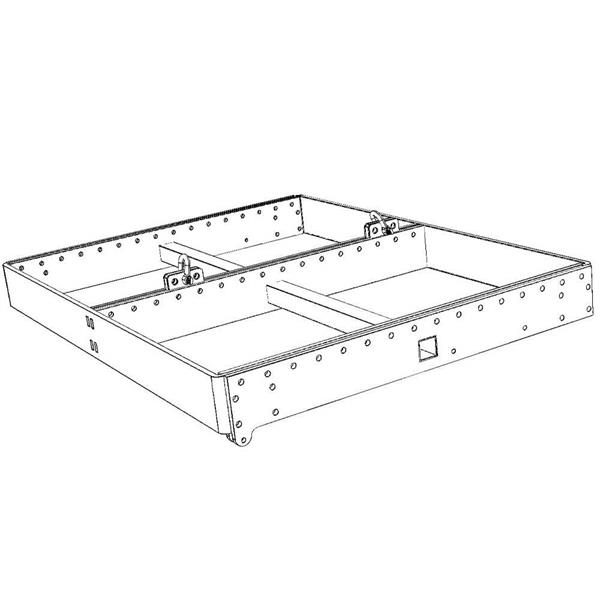

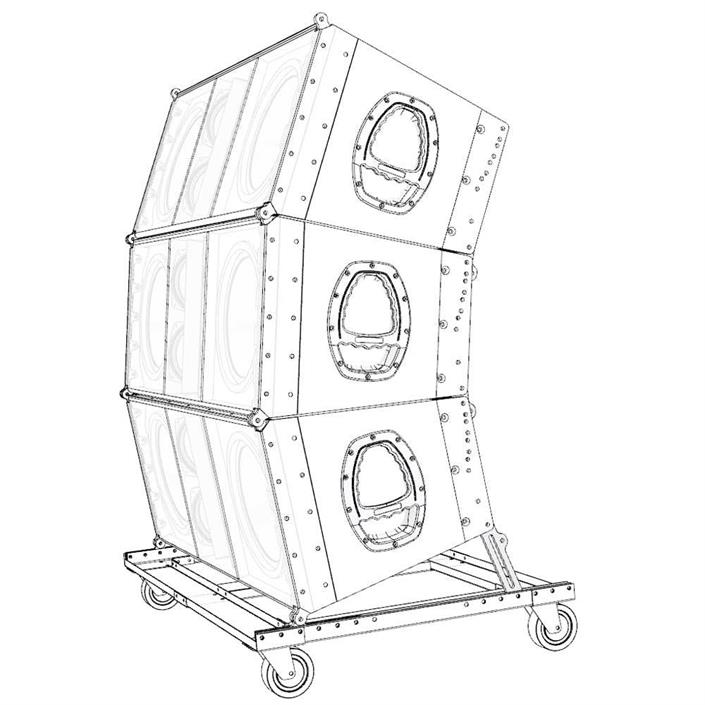

•Adjustable lifting points in bumper frame for balancing the load of the array
depending on til and number of speakers in the array,
Lifting points can be used at 1, 2, 3 or 4 points, either center lifting, or sidelifting.

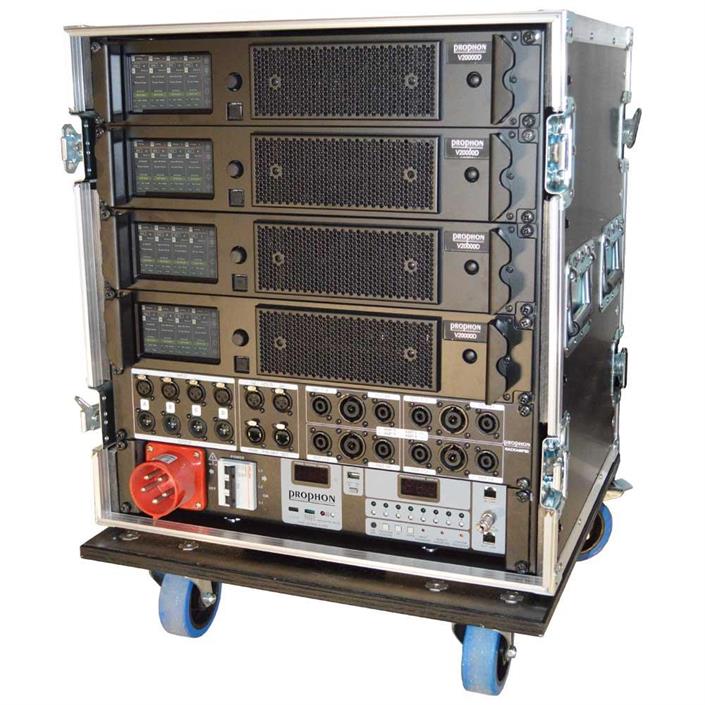

• FIR-filter presets avaliable in the V-series systems amplifiers,
DSP4800 system prosessor, and X-series amplifiers from powersoft
