GUIL Lyft/vevstativ för tross, högtalare mm..
Maxhöjd: 5,22m. maxvikt: 230kg.
Priser visas endast för kunder som är inloggade
- Artnr: ELC765
- I lager: 0
- Vikt, kg: 0
Beskrivning av artikel
Transportmått: 1,77m. x 45cm x 45cm
Vikt: 98 kg.

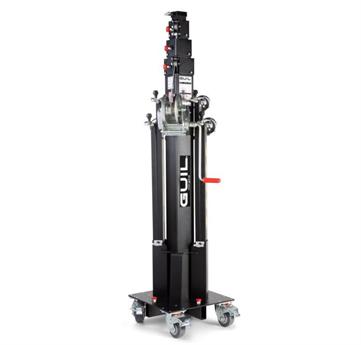

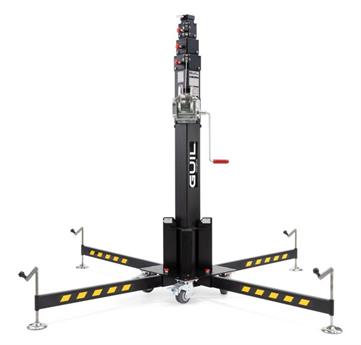

Telescopic lifting tower. Base equipped with wheels with brakes
Maximum height: 5.22 m (17 ft) / Maximum load capacity: 230 kg (507 lb)
Ref. ELC-765
Telescopic lifting tower designed and certified to lift loads of up to 230 kg (507 lb) to a maximum height of 5.22 metres (17 ft)

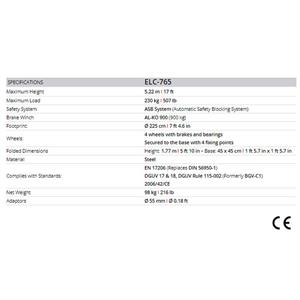

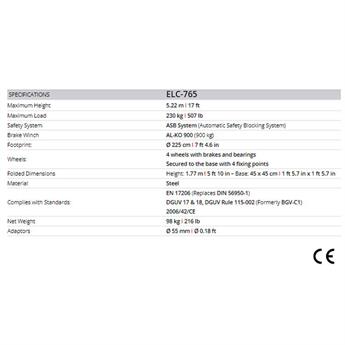

| SPECIFICATIONS | ELC-765 |
| Maximum Height | 5.22 m I 17 ft |
| Maximum Load | 230 kg I 507 lb |
| Safety System | ASB System (Automatic Safety Blocking System) |
| Brake Winch | AL-KO 900 (900 kg) |
| Footprint: | Ø 225 cm I 7 ft 4.6 in |

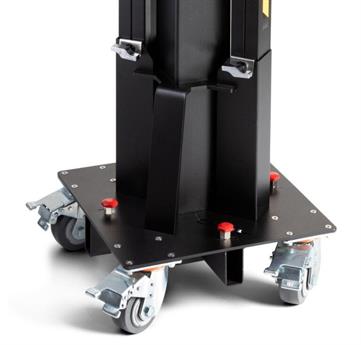

| Wheels: | 4 wheels with brakes and bearings |
| Secured to the base with 4 fixing points | |
| Folded Dimensions | Height: 1.77 m I 5 ft 10 in – Base: 45 x 45 cm I 1 ft 5.7 in x 1 ft 5.7 in |
| Material | Steel |
| Complies with Standards: | EN 17206 (Replaces DIN 56950-1) DGUV 17 & 18, DGUV Rule 115-002 (Formerly BGV-C1) 2006/42/CE |
| Net Weight | 98 kg I 216 lb |
| Adaptors | Ø 55 mm I Ø 0.18 ft |
