Prophon Zonemixer 10 in/2 out.

Select-switch på alla in för att adressera till 1, 1", 2 ut

separat volym på alla in, bas/diskant/volym på zone ut

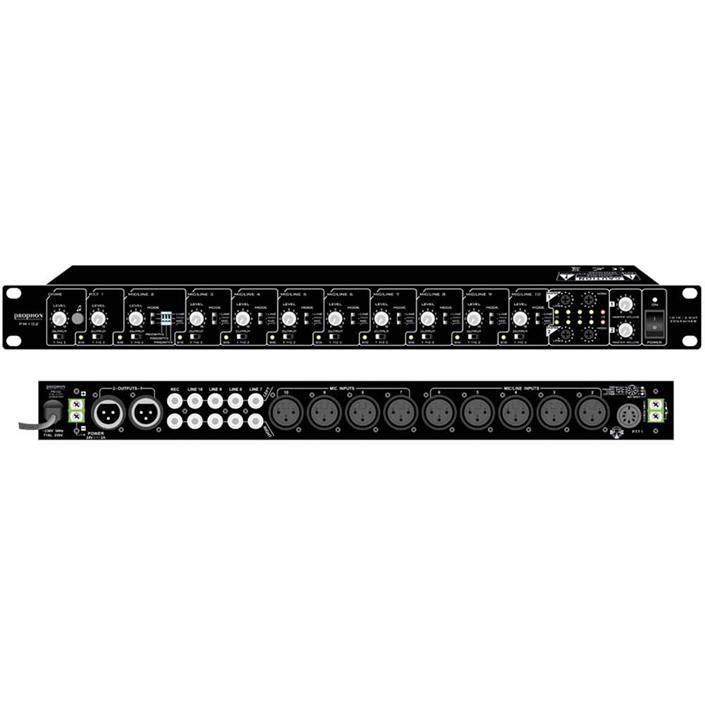

19” Zone mixer pre-amplifer, with 8 input and 2 zone outputs
Channel 1 input is deticated to the PTT announcement microphone, channel 2 to 10 input features seperate gain, with select switch for mick / line / mick with HP-filter, and also a select switch for adreesing to output 1 / output 2 / output 1 & 2.

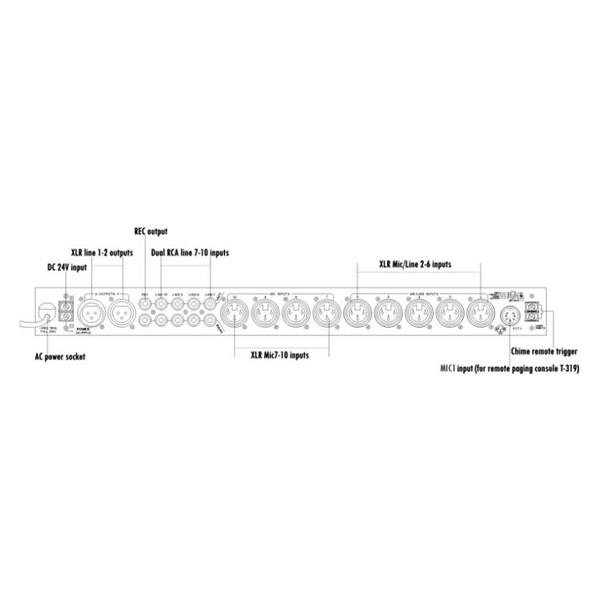

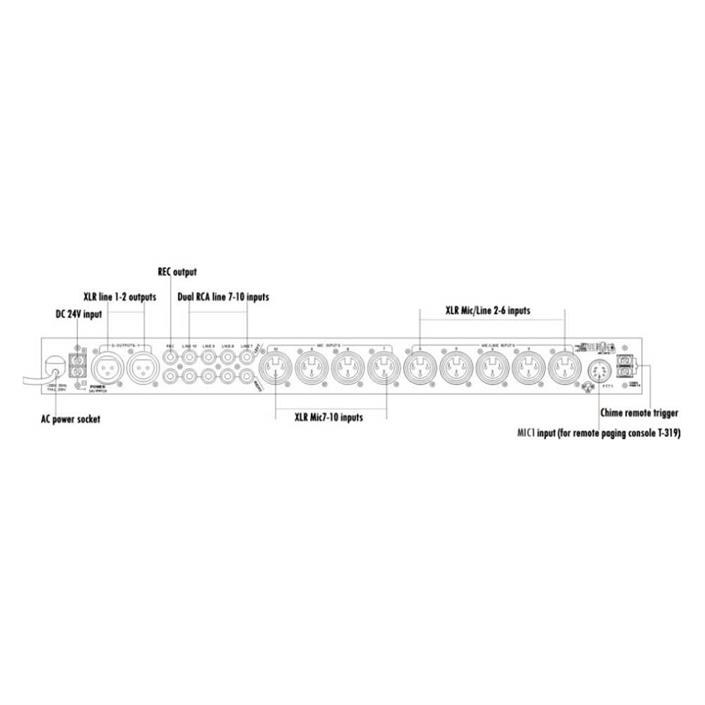

Input channel 2 features priority select. Input 2-6 is connected in the back with balanced XLR, input 7-10 features both balanced XLR input, and unbalanced stereo RCA input, for connecting both stereo music sources such as MP3-players, BLUtooth players, computers, web-radio, CD-players, Tuners. etc. and mick or other professional ezuipment via the balanced XLR input.
Both master channel output 1 and 2 features independent volume, bas and treble, output connectors are balanced XLR.
Power input can be used with standard 230VAC or 24VDC, for battery backup.

- 10 input
- 2 adressable zone output with seperate gain, bass and treble
- Deticated ptt announcement microphone with priority on channel 1
- 5 balanced xlr mick/line input connectors (2-6 input)
- 4 unbalanced stereo RCA inputs connectors (7-10 input)
- 4 balanced mono XLR input connectors (7-10)
- Seperate volume on all input ch.
- Seperate select switch on all input for mick / line / mick with HP-filter
- Seperate bas & treble on both output channels
- Seperate select switch on all input for adressing to out 1 / out 2 / out 1+2
- Channel 2 features priority
- Each input can be assigned freely to output channels
- 230VAC and/or 24VDC power input
