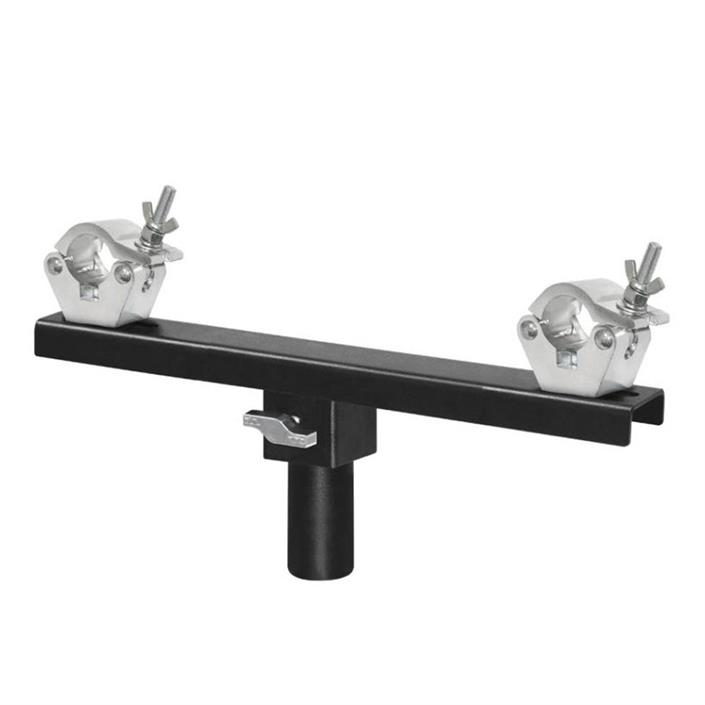

Truss adaptor fitted with couplers & a Ø 55 mm shaft.
For trusses from 40 to 52 cm

Adjustable & swivelling design. Includes 2 aluminium couplers

Ref. ADT-46

Adjustable truss adaptor with 2 aluminium couplers. It is fitted with a Ø 55 mm insertion shaft ending that has a square strengthening ferrule, removing the possibility of the top tube of the tower being damaged due to horizontal forces. Our truss adaptor ref. ADT-46 offers maximum safety and functionality for your events.

Adjustable: Its adjustable design allows it to be used with different size truss: from 40 cm to 52 cm.

Swivelling: The couplers that are provided with the adaptor are swivelling, this way the truss can be fitted to the adaptor in any required position, offering professionals multiple set-up possibilities.

It comes with 2 aluminium couplers: The truss is fitted to the adaptor by means of 2 aluminium couplers ref. ABZ-29 (WLL: 500 kg). These reinforced couplers are designed to be used on trusses with an external diameter of 45 mm to 52 mm.

Our resistant and durable truss adapters are an essential accessory to guarantee maximum safety when lifting truss structures. They are manufactured in steel with rounded edges giving a smooth finish preventing damages or injuries (no sharp edges).
